This instructions will show you how to install the 12 colors ambient light for Mercedes GLE W176, upgrade original 3 colors ambient light to 12 colors. It need to do the coding to activate the original 3 colors ambient light menu to 12 colors menu, you can do the coding before installation.
Product link: Mercedes GLE 12 Colors Ambient Light, Upgrade Original 3 Colors Ambient Light to 12 Colors
Front Door Light Installation Instructions

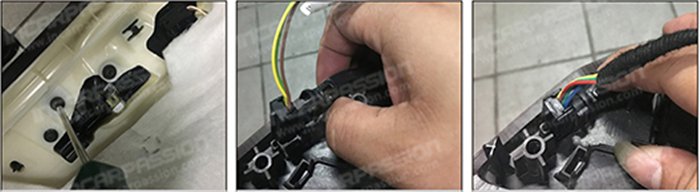

1, Pry out the small cover of door handle
2, Remove screws
3, took out the door panel

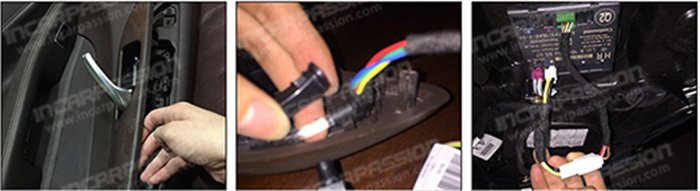

4, Remove the handle steel wire
5, Pull out the door socket
6, Pull out the socket

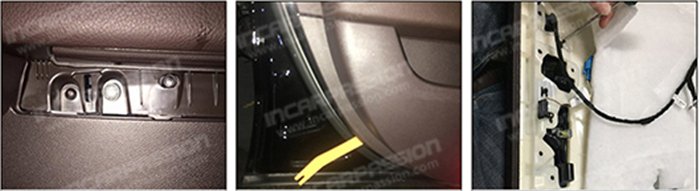

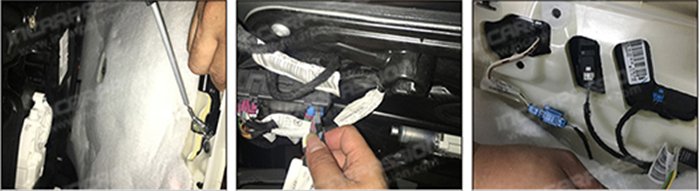

7, Remove the ash wood fixing screws
8, Remove original 3 colors led lamp
9, Install our 12 colors harness

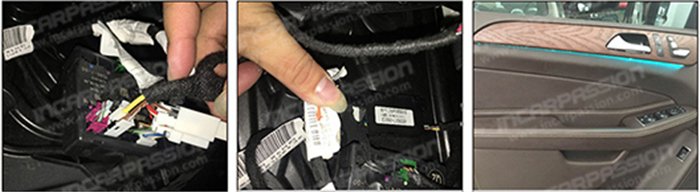

10, Convert the control box harness
11, Fix the control box
12, After install
Rear Door Light Installation Instructions

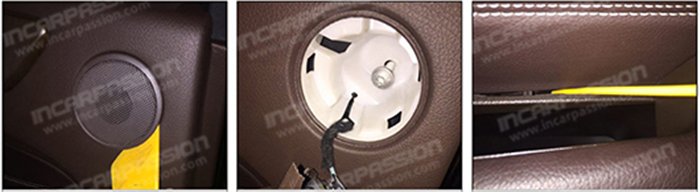

1, Remove original tweeter cover
2, Remove fixing screws
3, Pry out the cover of door handle
4, Remove fixing screws
5, Open and take out the door panel
6, Remove the ash wood fixing screws
7, Pull out the harness and take out the ash wood
8, Replace original 3 colors led lamp to 12 colors lamp

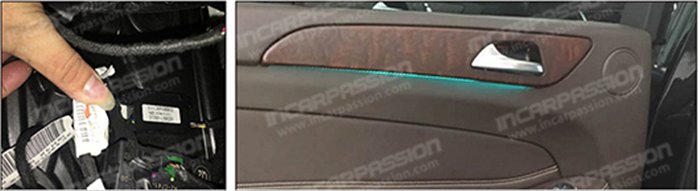

9, Convert the control box harness
10, Fix the control box
11, After install

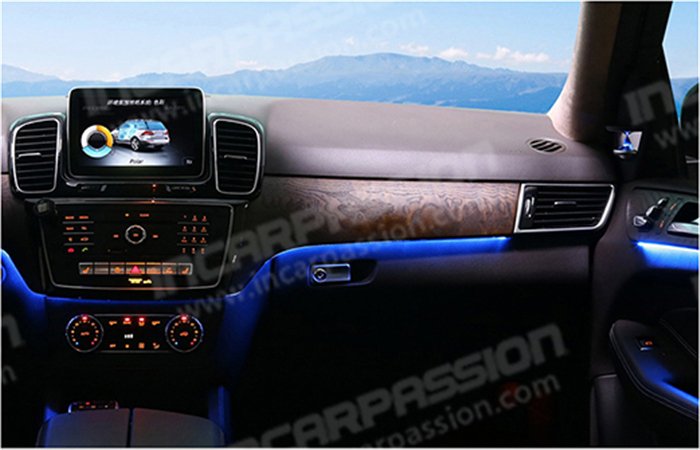

Installation Effect
