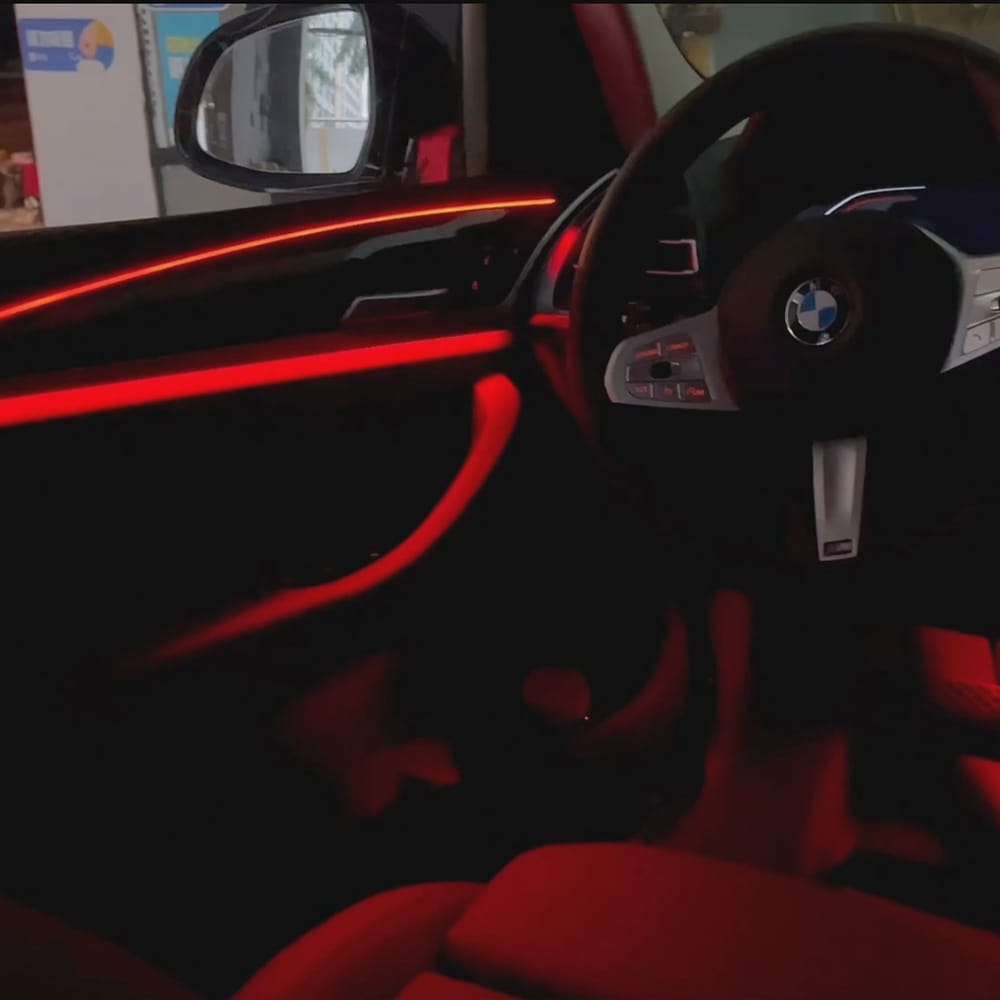

Upgrade Your BMW Interior: X3 G01 & X4 G02 Ambient Lighting Installation Tutorial

Model: BMW X3 (G01) / X4 (G02)

Difficulty: Medium (soldering & programming required)

Time: 2–4 hours

Tools & Parts

4P power cord & large knob adapter
Ambient LED lamp strips ×4 (one per door)
Central controller / screen & dial
Soldering iron, solder, cutters
Heat-shrink tubing, zip ties, insulating tape
Programming cable & laptop (for coding)

Step-by-step Installation

Find power cord & control knob (4P power cord adapter).
Locate the 4P power adapter position and the control knob mounting point. Confirm the ambient lamp locations on each door before beginning.
Thread wiring through door panels.
For all four doors, feed the lamp wires into the door panel through existing grommets or wire channels. Leave enough slack to allow door movement without straining the wires.
Male & female plug color docking (plug terminal).
Match male and female connectors by color or label. Ensure connectors click into place and perform a gentle pull test so they won’t loosen over time.
Install central control light strip & prepare solder joints.
Mount the central control light strip where planned. Cut solder joints flat and clean; file or trim any raised solder points. Secure the lamp board so nothing will be pinched when reassembling the panel.
Set and mount the door light bars.
Follow the installation diagram to place light bars under the door trim. Make sure the strip sits flat and cannot be compressed by the trim or panel.
Repeat for all four doors & verify connectors.
Confirm each door is wired correctly and that all connectors/colors match before connecting to the central harness.
Screen control / dial coding (computer programming required).
Use the programming cable and software to map controller channels to each door output and assign control behaviors (modes, colors, brightness).
CD-panel digital button controls & shortcuts.
Short press the CD combination button to access adjustment mode. Use these shortcuts:
1 + 4 — Mode change • 1 + 5 / 1 + 6 — Color change • 1 + 7 — Brightness adjustment
Final test, tidy and reassemble.
Power up and test each door individually and all together. Verify mode, color, brightness controls, and that no wires are pinched. Secure harnesses with zip ties and reinstall door panels.

Installation Diagrams / Images

Replace the placeholders with your actual diagrams or photos. Recommended images: wiring harness close-up, solder-joint close-up, door-panel routing, final lit interior photo.

Wiring diagram placeholder — replace with image: images/wiring-diagram.jpg

Light strip location (under door) placeholder — replace with image: images/lightstrip-under-door.jpg

Pro Tips & Important Notes

• Cut solder joints flat and insulate properly (heat-shrink) to prevent short circuits when the panel is reassembled.
• Leave adequate slack at hinge points; wires that are too tight will break over time.
• Use strain relief (zip ties + adhesive mounts) to prevent movement-related failures.
• If you’re not comfortable programming the controller, consult an experienced coder or certified technician.

• When done, test all modes and brightness levels. Check each door individually and confirm the CD-panel shortcuts behave as expected.
• "PASSION Store NC" — if this is your shop profile or preset, ensure the correct profile is loaded during programming.

Troubleshooting

Door lamp does not light

Check color-coded connectors, continuity from the lamp to the controller, and solder joints. Verify the fuse and that the controller power is present.

Controller not responding

Confirm the 4P power adapter polarity and tightness. Re-do programming mapping and re-flash if necessary. Check ground connections.

Intermittent flicker when door opens/closes

Likely a loose connector or a wire being pinched at the hinge. Re-route and secure harness with extra slack and strain relief.

FAQ

Do I need coding?: Yes — to map outputs and enable CD-panel shortcuts and desired behaviors you will need to program the controller via laptop or programming tool.
How long does installation take?: Approximately 2–4 hours depending on experience and whether you have programming set up.
Is soldering mandatory?: If the kit uses soldered boards, yes — but some plug-and-play kits exist that avoid soldering. Always ensure secure, insulated connections.
