This installation instructions will show you how to install a Android navigation screen for Mercedes C Class W204 2008-2010, upgrade the original small screen(or without screen) to 10.25” big touch screen.

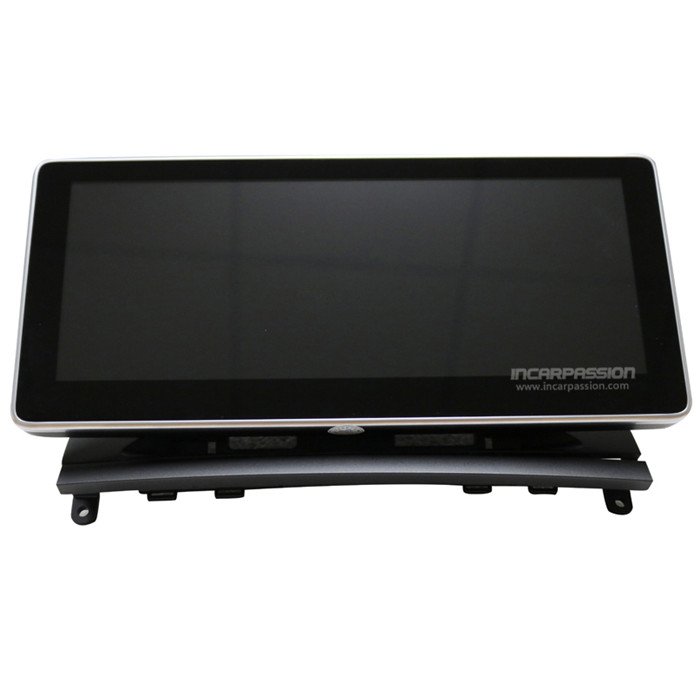

Product link: 10.25” MBUX UI Android 8.1 GPS Navigation System for Mercedes C Class W204 2008-2010
1, original screen

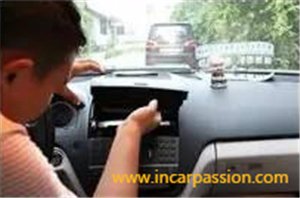

2, pry out air conditioner panel
3, Pull out air conditioner cable

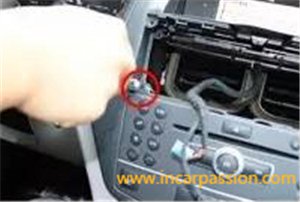

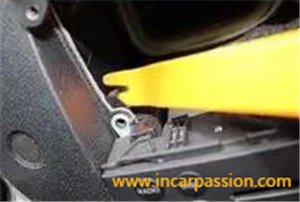

4, Remove the screen fixing screws

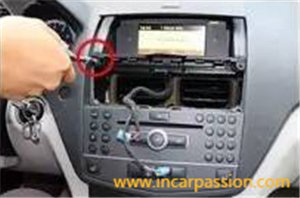

5, Remove the screen fixing screws

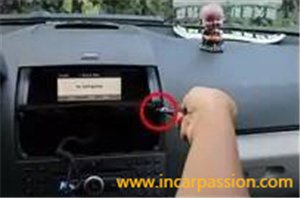

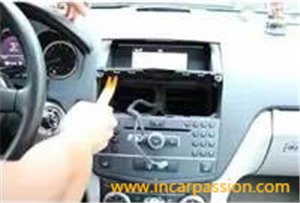

6, Pry out original screen

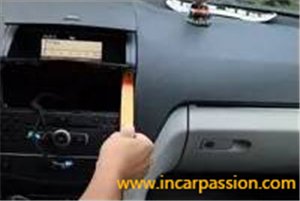

7, Pry out original screen
8, Take out original screen
9, Remove CD player screws
10, Remove CD player screws
11, Remove CD player fixing stick
12, Remove CD player fixing stick

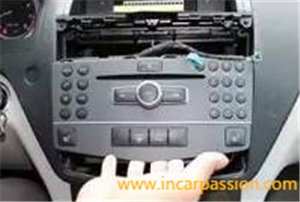

13, Take out CD player
14, Pull out hardness behind the radio

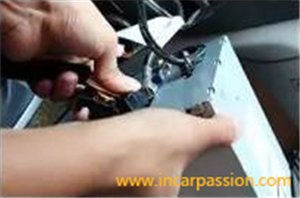

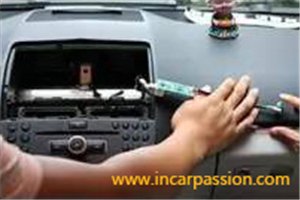

15, original screen socket convert to our cable
16, original radio cable convert to our cable
17, Our connector connect to radio

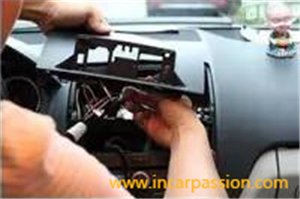

18, Install the android screen bracket

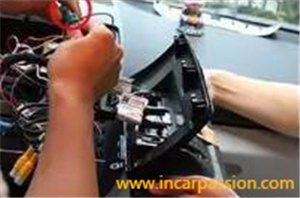

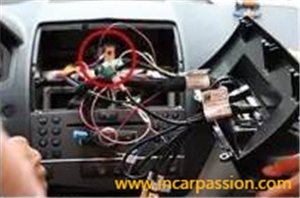

19, Connect the LVDS cable
20, Connect the LVDS cable

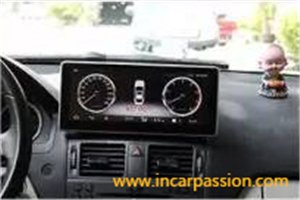

21, After install
22, After install

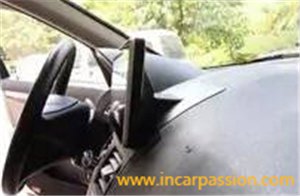

23, After install

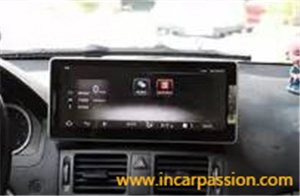

24, After install
