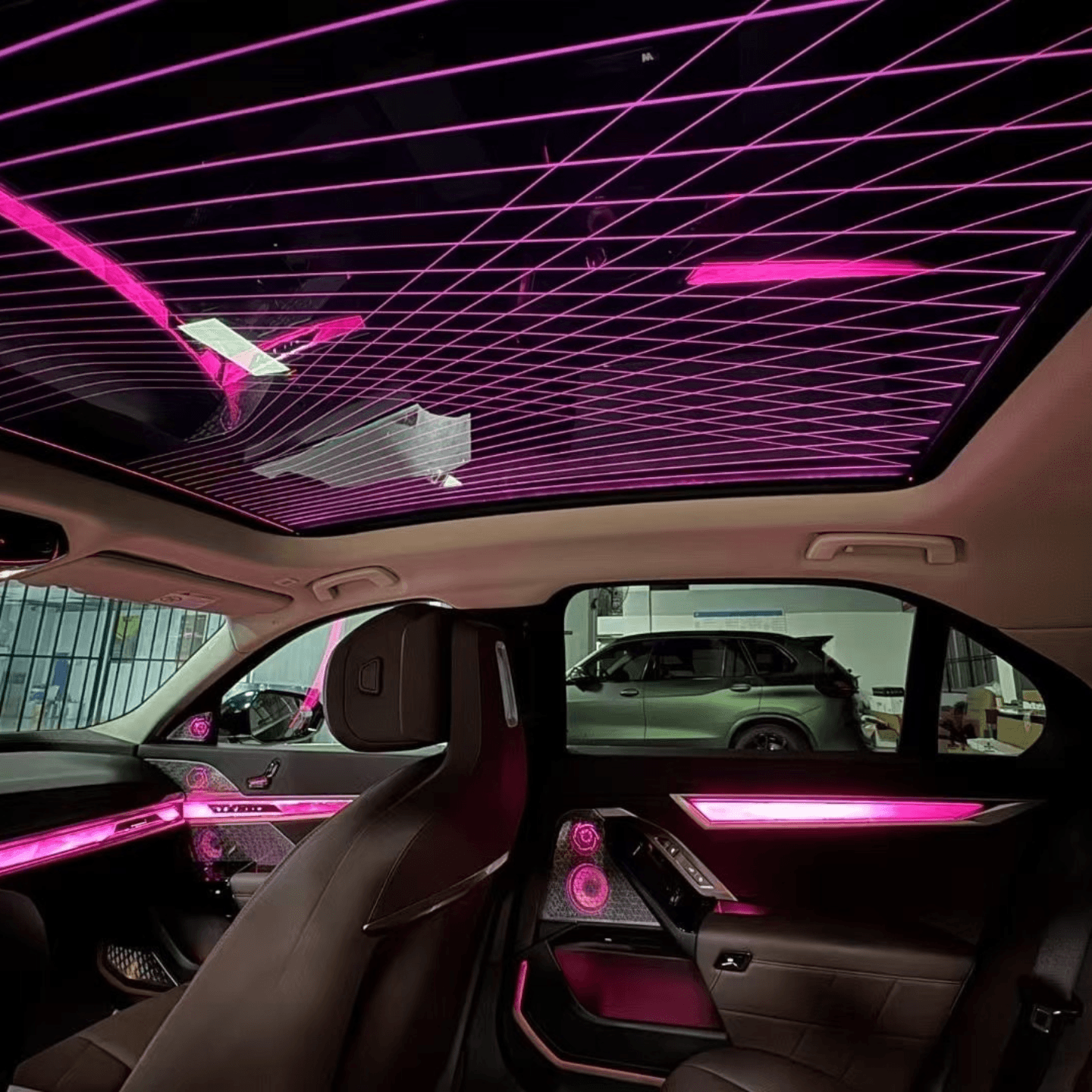

Ever admired the breathtaking Sky Lounge roof in high-end BMW models and wished your own X3, X5, X6, or X7 had that same luxurious, starry-sky ambiance? Now you can recreate that premium atmosphere with a custom-designed Sky Lounge Roof Ambient Lighting Kit — engineered to deliver a clean, factory-style finish without replacing the entire roof assembly.
Unlike standard ambient lighting upgrades that focus only on door panels or dashboards, the Sky Lounge retrofit transforms your panoramic roof into a softly illuminated light canvas, adding depth, elegance, and a high-end nighttime driving experience. The result is a dramatic yet refined glow that enhances both comfort and exclusivity inside your BMW.
This step-by-step DIY installation guide walks you through the entire process — from applying the light-diffusing film to routing the spring wire and securing the LED light strip with precision. Each stage is designed for accurate fitment and straightforward setup, helping you achieve professional-level results at home.
Whether you’re upgrading for aesthetics, resale value, or a more immersive driving atmosphere, this guide ensures a smooth installation and a stunning final outcome.
What You’ll Need
- Sky Lounge Roof Ambient Lighting Kit
Ensure you have the correct kit for your specific BMW X3 / X5 / X6 / X7 model. - Cleaning Solution (Glass Cleaner Formula)
Mix water and dish soap as follows:- For 500ml–750ml water: Add 3 drops of dish soap (about the size of a soybean).
- For 2000ml water: Add 7 drops of dish soap (about the size of a soybean).
Important: Do not use too much dish soap, as excessive soap will prevent the film from sticking properly.
When squeegeeing, first apply a cross pattern, then push water toward the four corners. Apply firm pressure and wipe clean in one continuous motion.
After installing the film, allow it to dry completely before installing the light strips. Installing the light strips too early may cause the film to peel off and become damaged if removed later.
- Microfiber Cloths
For thorough cleaning and drying. - Squeegee or Credit Card
To smooth out the film and remove air bubbles. - Utility Knife or Precision Blade
For trimming excess film (use a fresh, sharp blade for best results). - Trim Removal Tools (Plastic Pry Tools)
Needed if accessing wiring or interior panels.
Compatibility List
This DIY BMW Sky Lounge Roof Ambient Lighting Kit is compatible with:
BMW 3 Series G20 / G21 (2019–2025)
BMW 5 Series G30 / G31 (2018–2025)
BMW 7 Series G11 / G12
BMW X3 G01
BMW X4 G02
BMW X5 G05
BMW X6 G06
BMW X7 G07
⚠ Always confirm whether your vehicle is equipped with a panoramic glass roof before purchasing.
If you're also upgrading interior lighting, check:
Installation Steps:
Step 1: Film Installation Creating Your Canvas
This step is crucial for the overall look, so take your time!
Clean the Sunroof Glass Thoroughly: This is arguably the most critical part of film installation. Dust, fingerprints, or smudges will be trapped under the film and highly visible.
Spray your cleaning solution generously onto the sunroof glass.
Use a clean microfiber cloth to scrub the entire surface.
Wipe dry with a separate, clean, lint-free microfiber cloth. Inspect it closely for any remaining particles. Repeat if necessary!
Slightly dampen the sunroof glass again with your cleaning solution – this allows you to slide and position the film.
Carefully peel a corner of the protective backing from the film.
Align the film with one edge of your sunroof glass, ensuring it's straight.
Slowly peel back the rest of the backing while gently laying the film onto the wet glass.

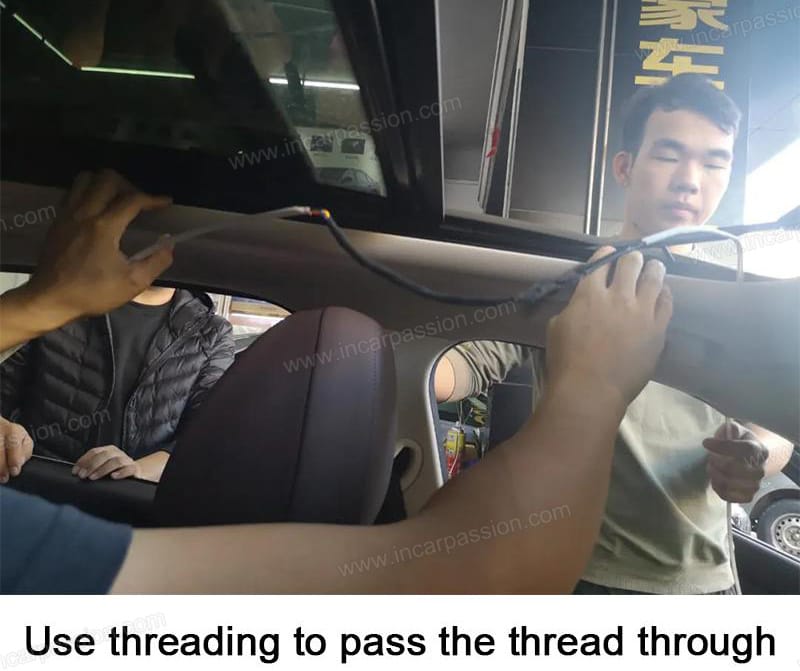

Step 2:Spring Wire Installation

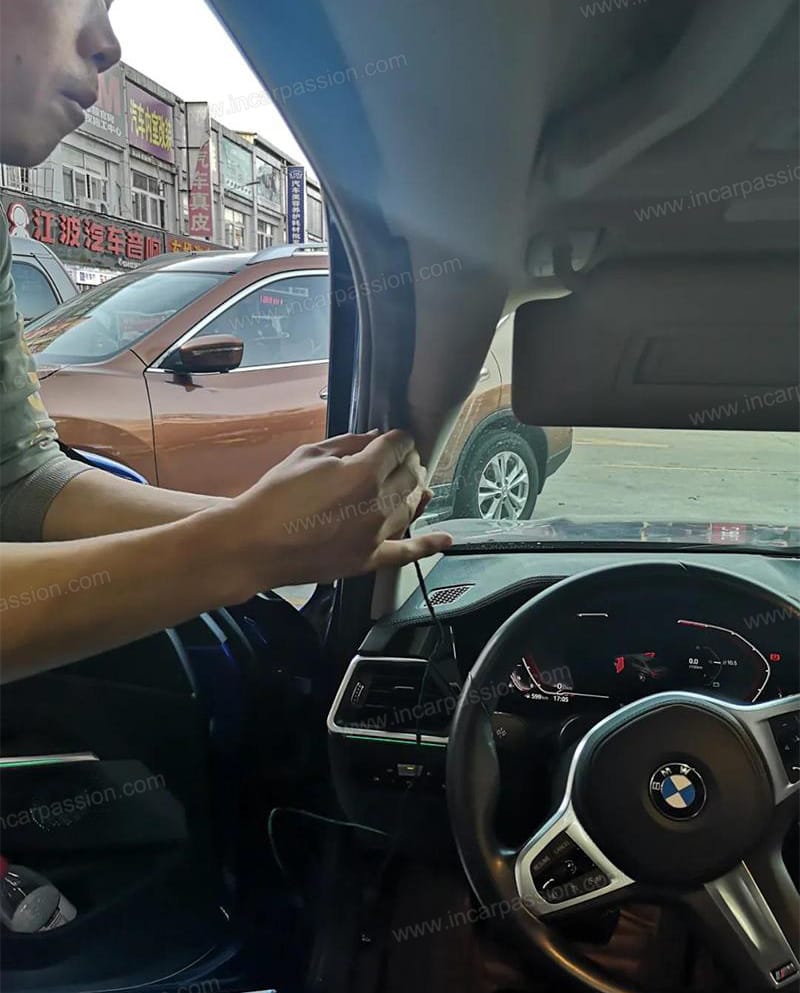

Route the spring wire along the edge of the sunroof frame as video.

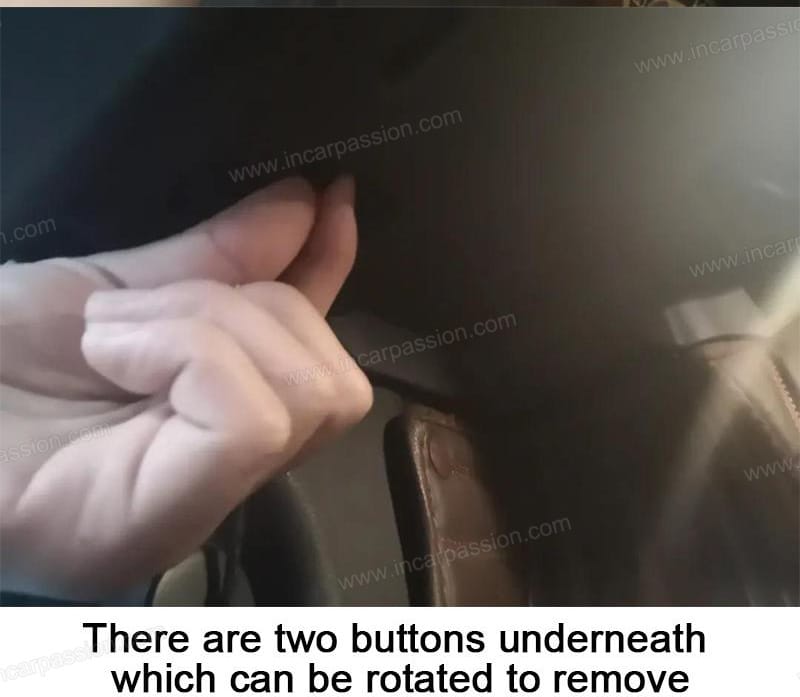

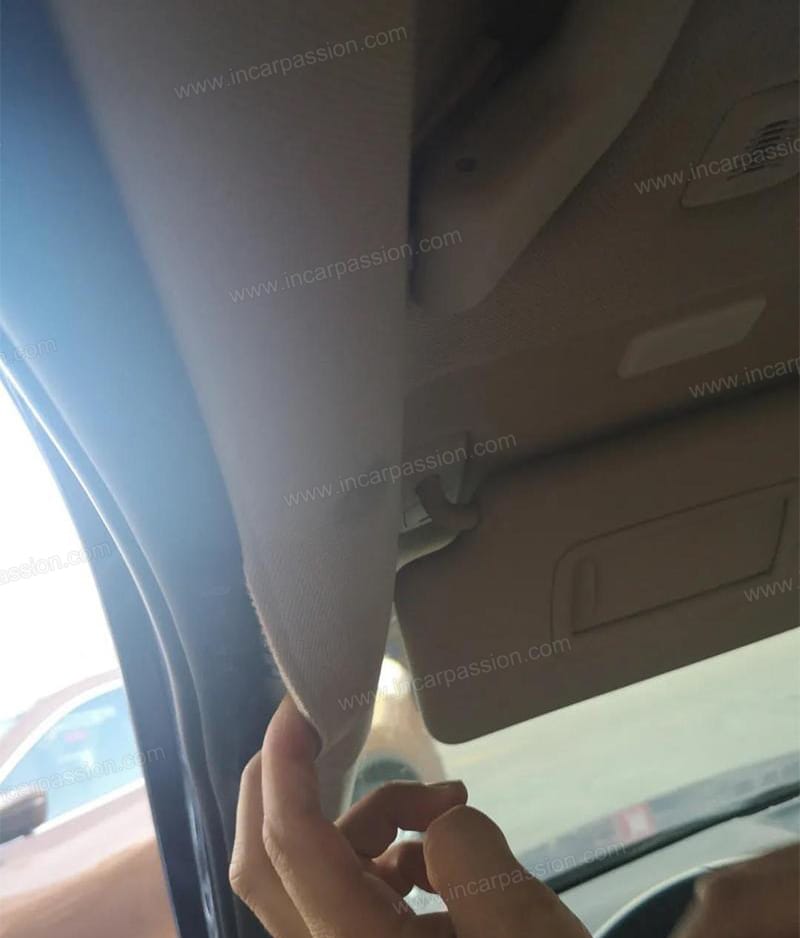

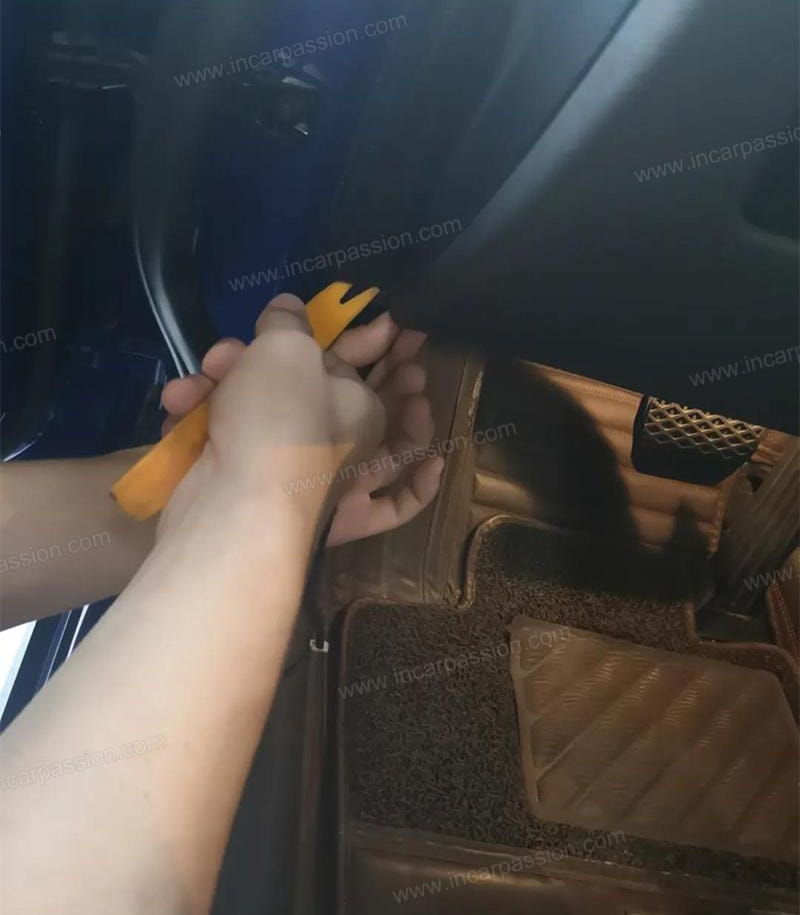

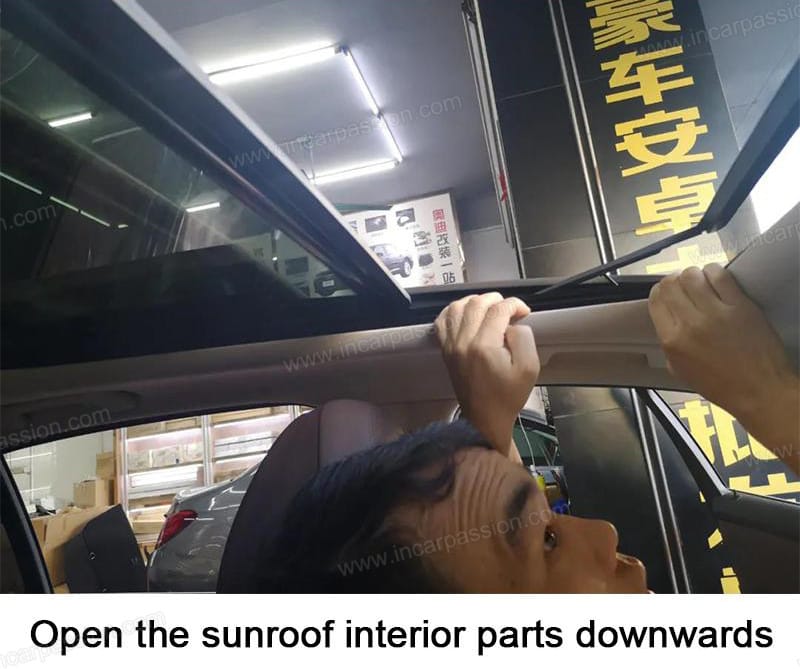

You may need to gently pry back some interior trim pieces using your plastic trim removal tools to tuck the wire neatly and invisibly. Avoid forcing anything to prevent damage.
Ensure the wire is secure and won't sag or interfere with the sunroof's operation.

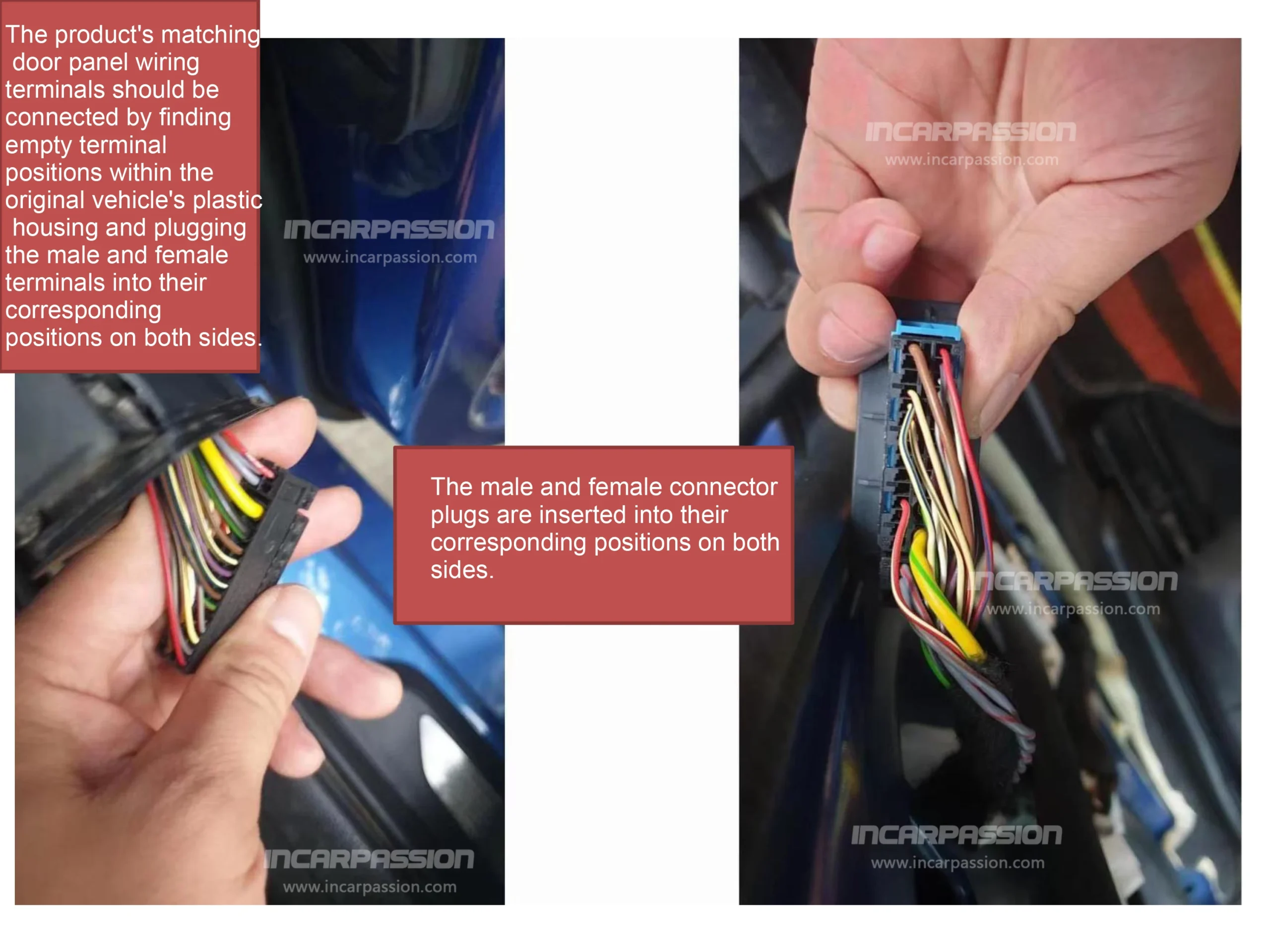

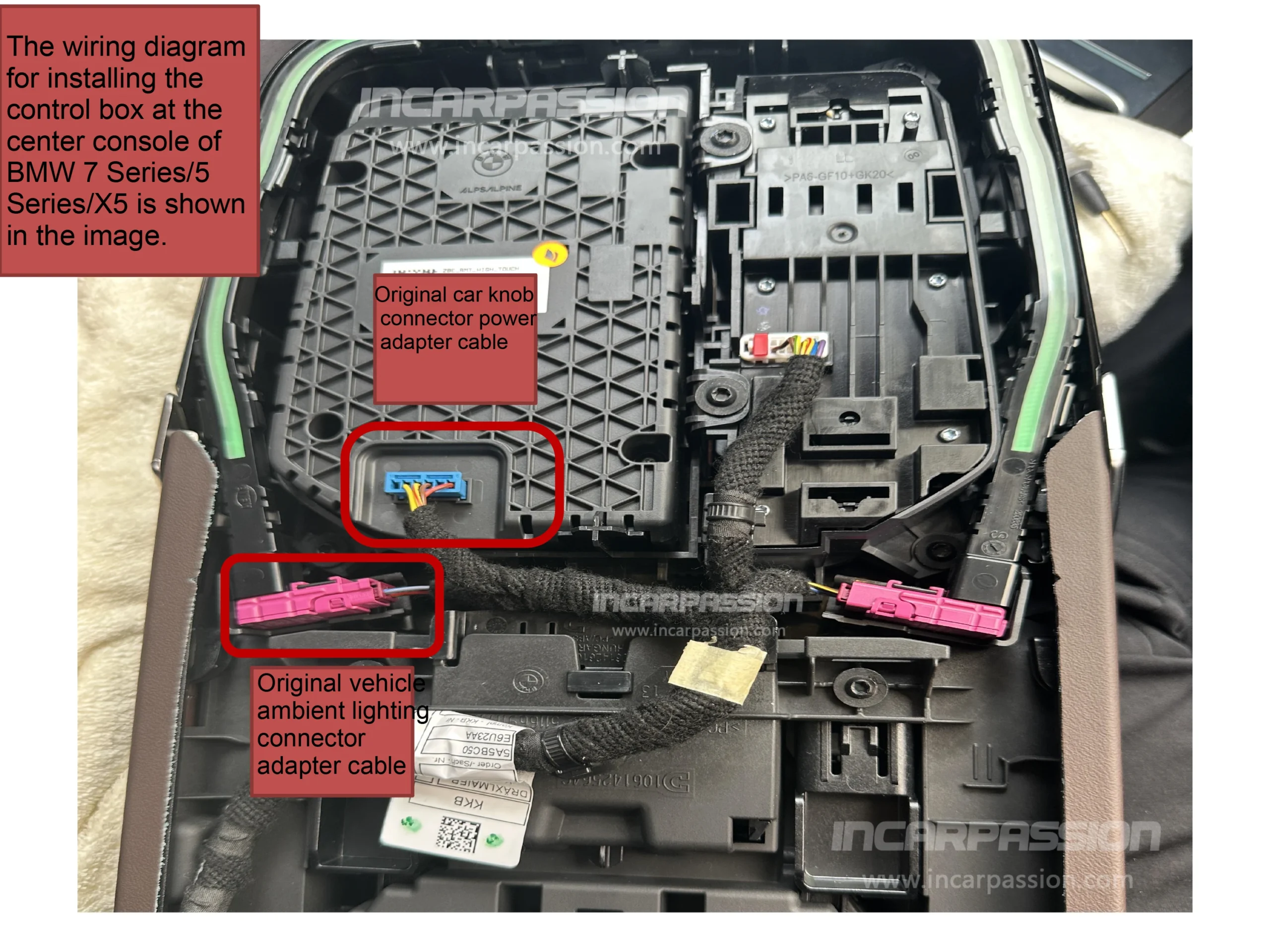

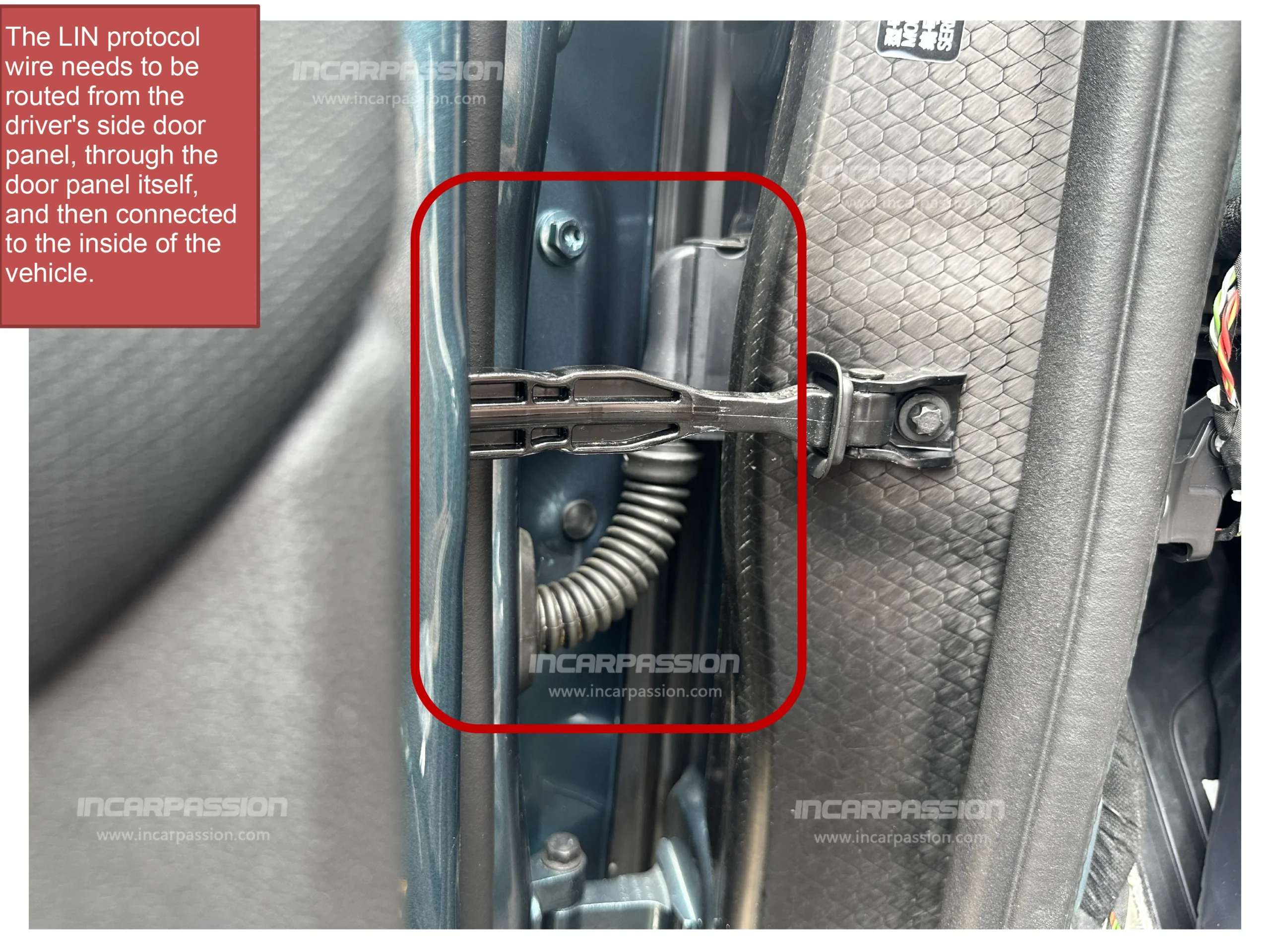

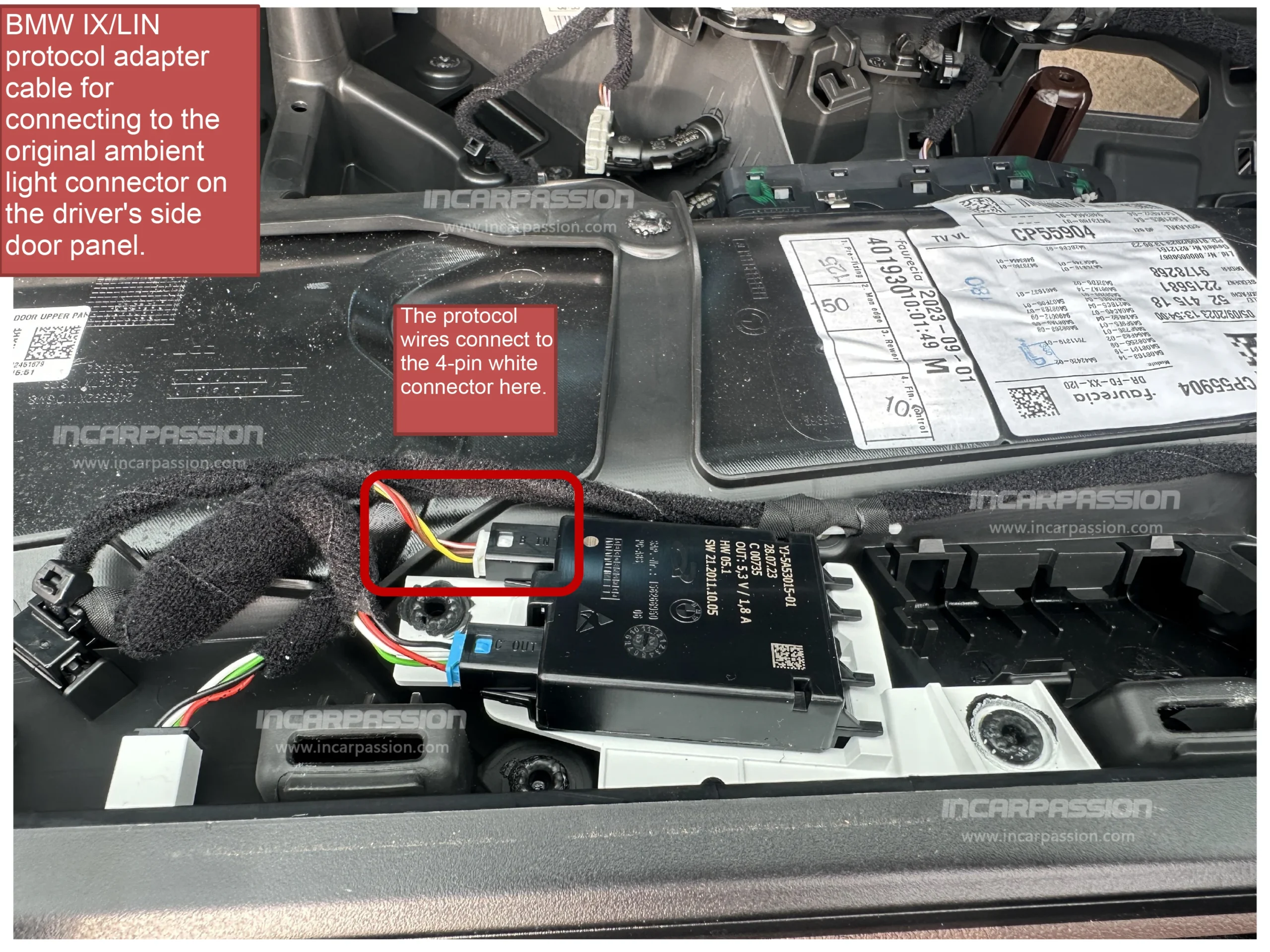

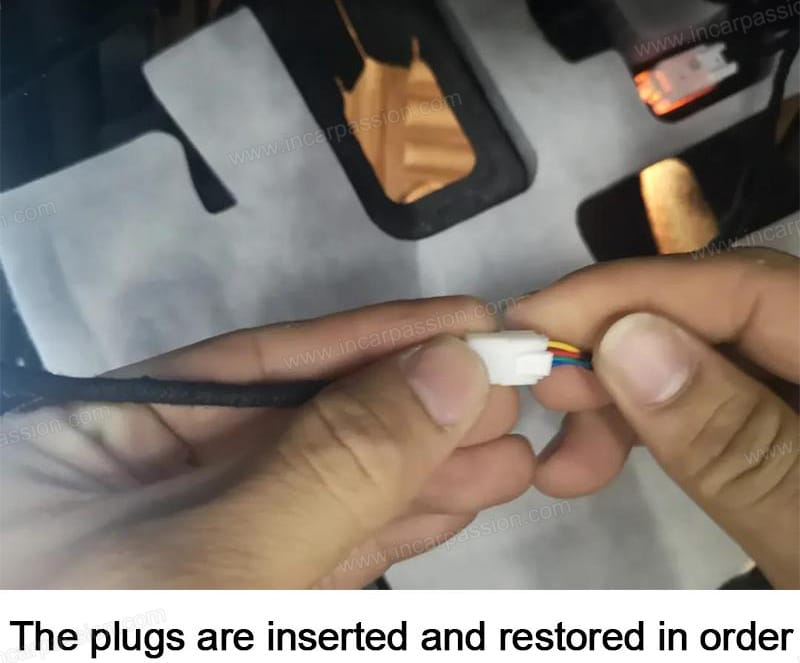

Next is the wiring process.

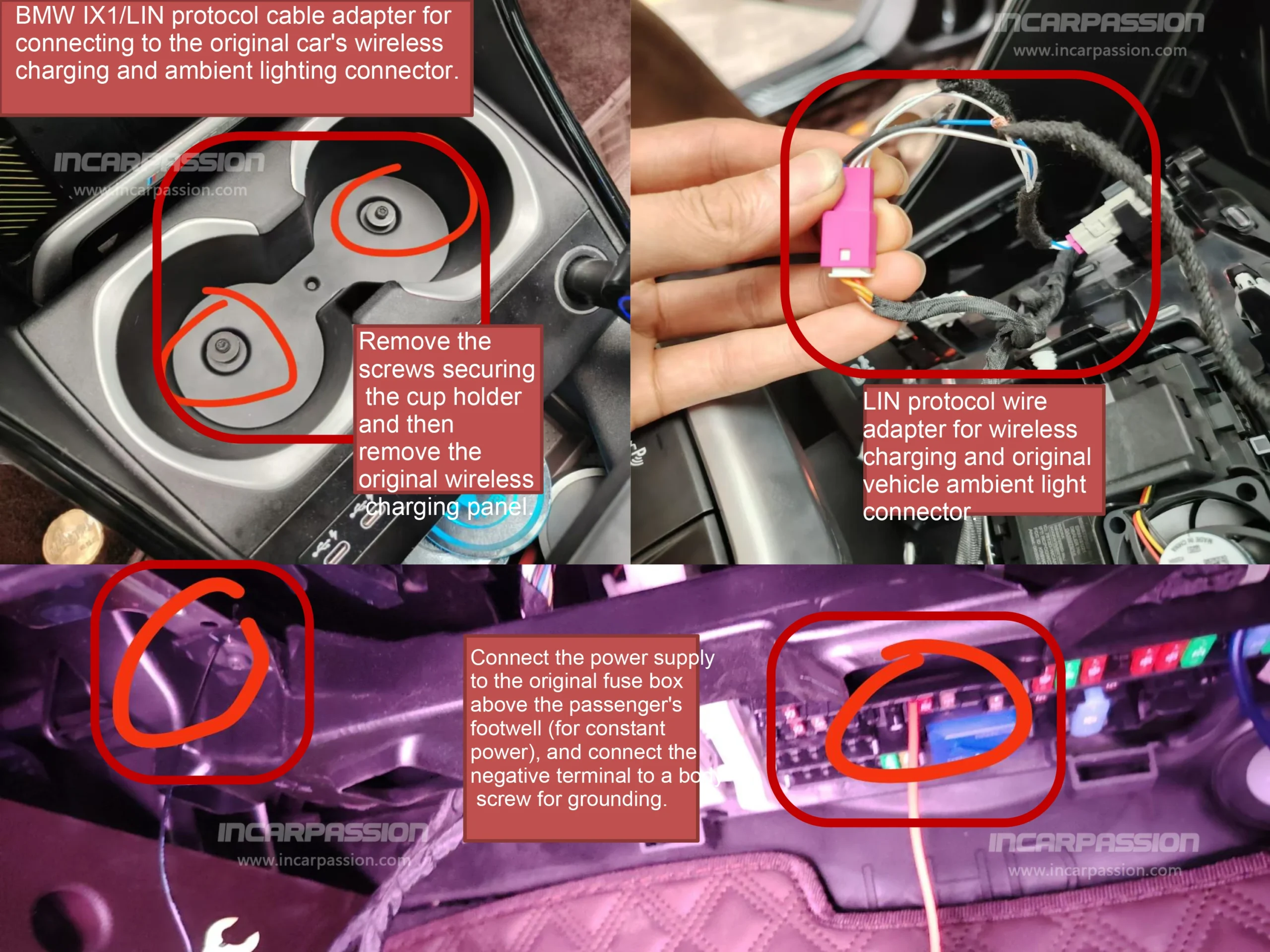

The wiring method may vary depending on the vehicle model. Please select the appropriate wiring method based on the color of the controller you received.
Once completed, please proceed to Step 4: LED Light Strip Installation.

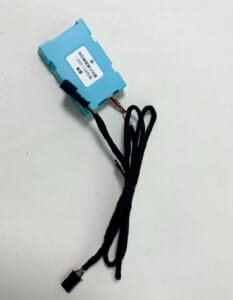

If the product controller you received looks like the blue one on the right,
Click the image to skip to Step 👉

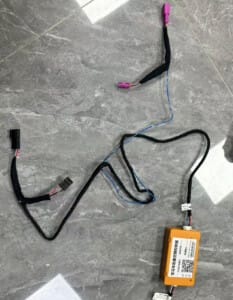

If the product controller you received looks like the yellow one on the right,
Click the image to skip to Step 👉
Step 4: LED Light Strip Installation

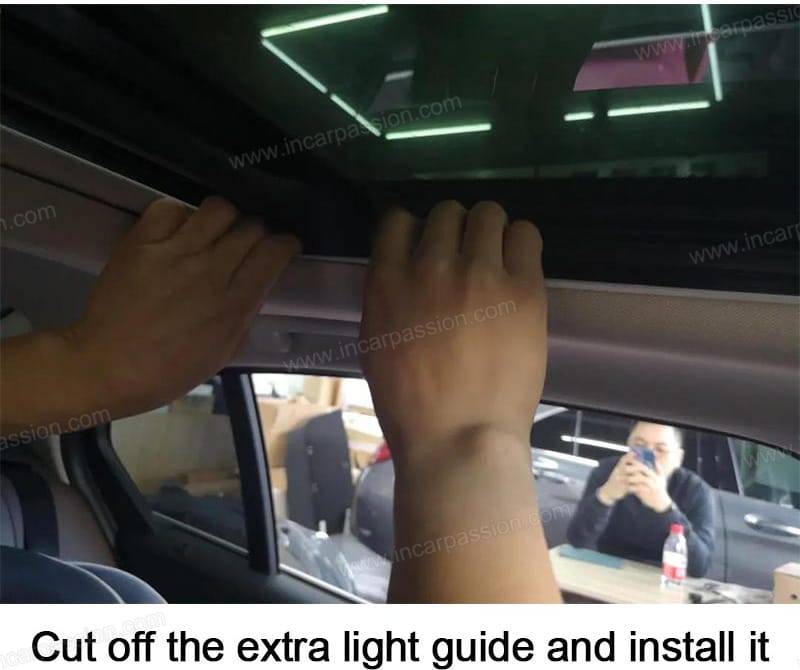

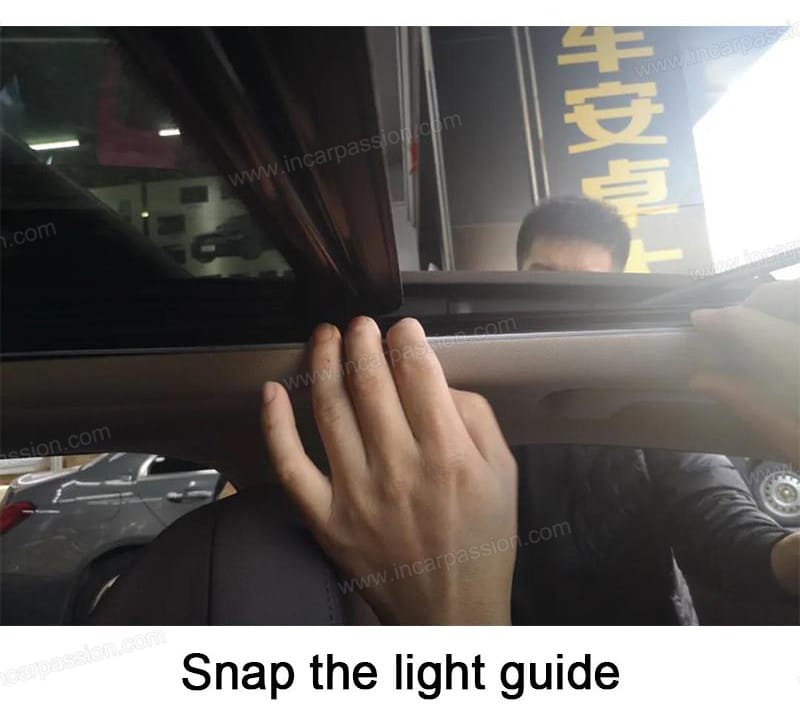

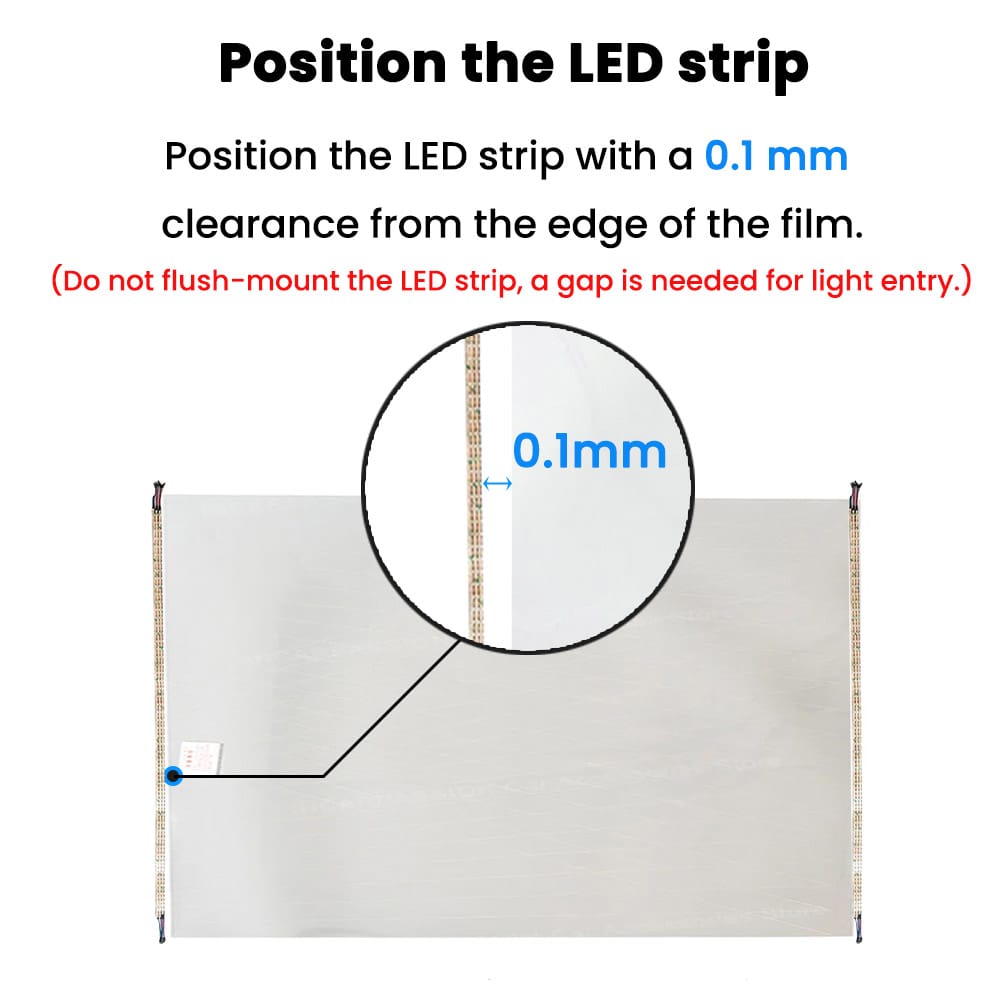

Install the LED Light Strip: Carefully peel the adhesive backing from the LED light strip and install it into its designated mounting position, typically along the perimeter of the sunroof opening, just inside the frame.
Test the Lighting: Before you reassemble any interior trim, power on your car and test the lighting to confirm normal operation.
Check if the entire strip lights up evenly.
If your kit has color changing features, test them out.

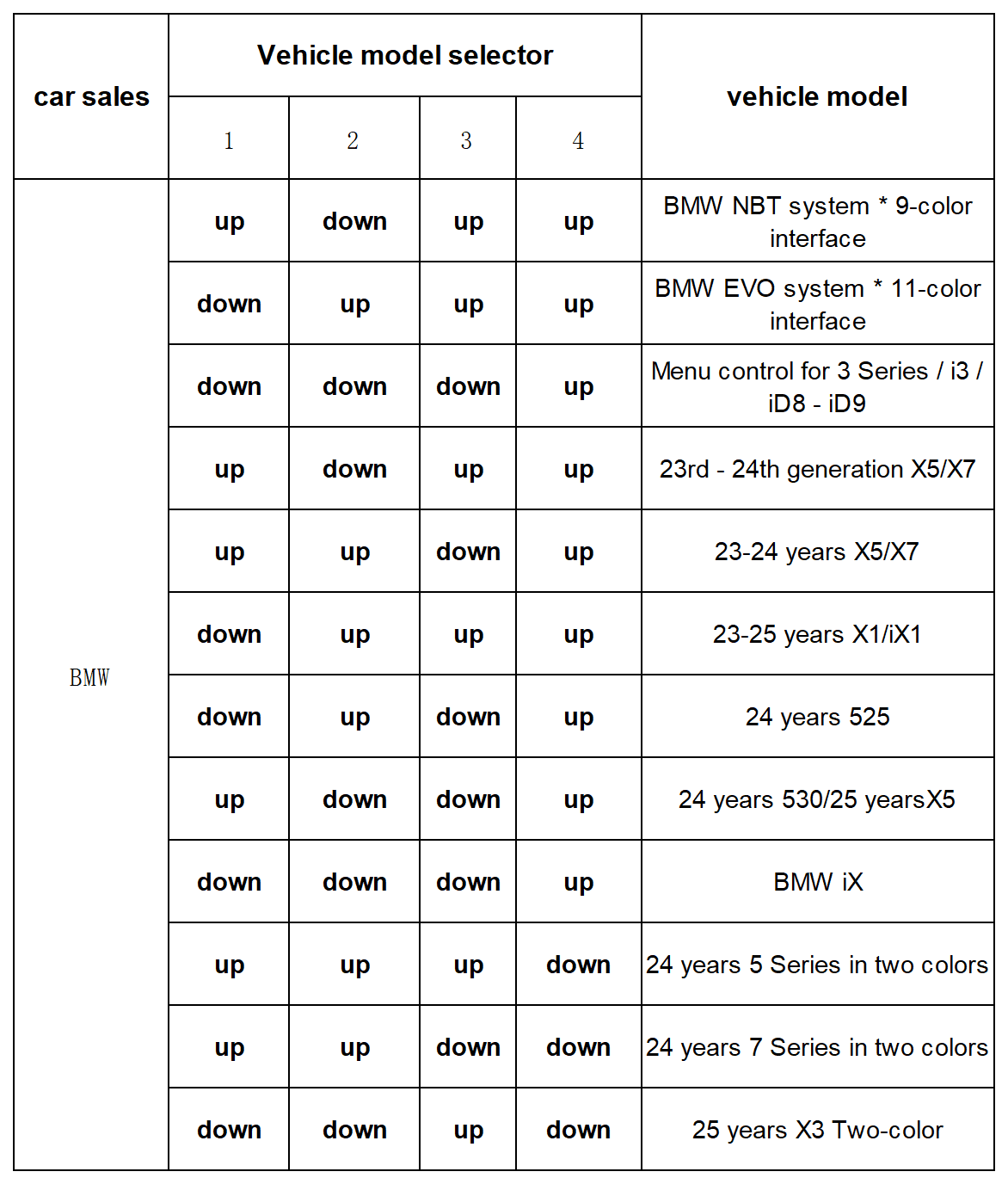

Step 5：DIP switch operation instructions (controlling the DIP switches)
You've just upgraded your BMW with a stunning Sky Lounge ambient lighting system. Get ready to enjoy a whole new level
Frequently Asked Questions
1. Does this kit require coding?
Most models do not require coding if connected properly. However, some vehicles may require minor activation depending on software version.
2. Is this a genuine BMW Sky Lounge system?
This is an OEM-style retrofit kit designed to replicate the factory Sky Lounge effect without replacing the entire roof assembly.
3. Will it work with my existing ambient lighting?
Yes, it is designed to integrate with your factory ambient lighting system (model dependent).
4. Can I install this without removing the entire headliner?
Partial headliner removal is required for proper installation.
5. Does this affect the panoramic roof functionality?
No. The lighting system does not interfere with sunroof operation when installed correctly.
6. Can I choose different colors?
Yes, color options depend on your vehicle’s ambient lighting control system.
7. Is professional installation required?
It is recommended but not mandatory if you have experience with BMW interior modifications.
