Mercedes GLE GLS ML GL Burmester Design 3D Rotating Tweeter Installation Instruction

on
Categories: Mercedes Benz

This installation instructions will show you how to install a 3 colors or 12 colors Burmester Design 3D Rotating Tweeter for Mercedes Benz GLE GLS ML GL

Product link: 3D Motorized Rotating Tweeter with LED Ambient Light for Mercedes W166 GLE GLS GL ML

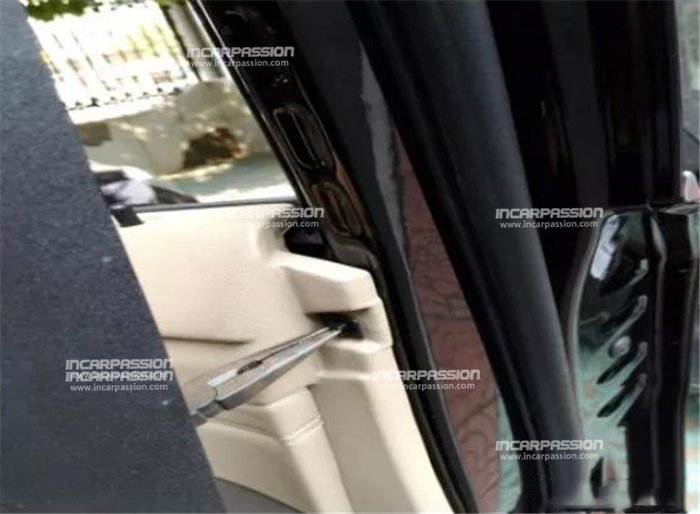

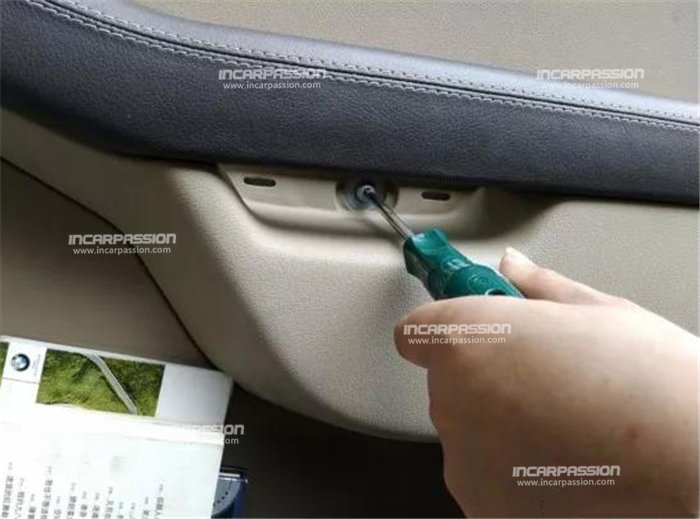

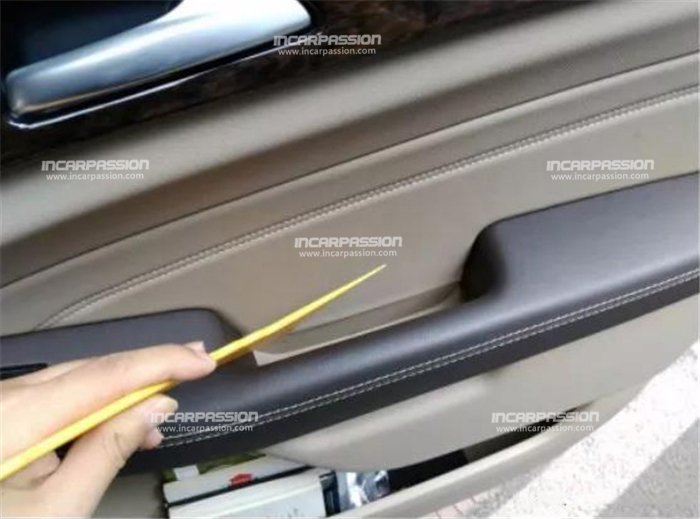

Rmove Door Panel

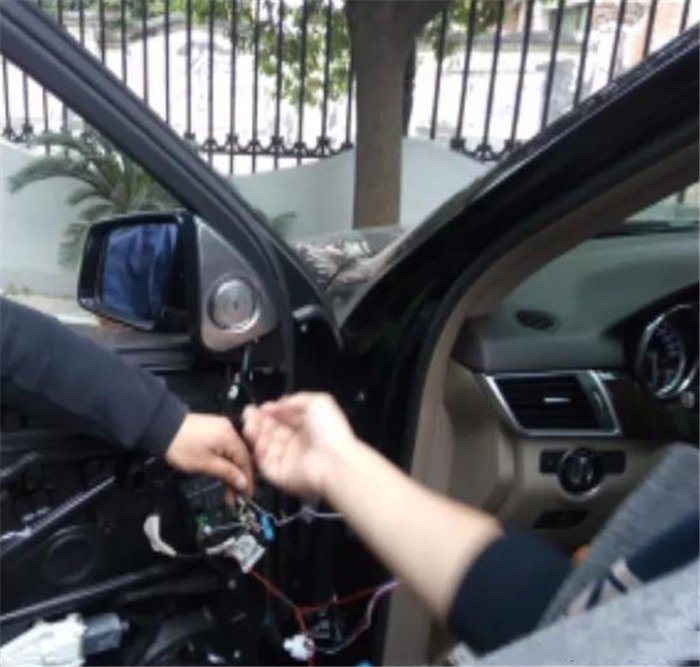

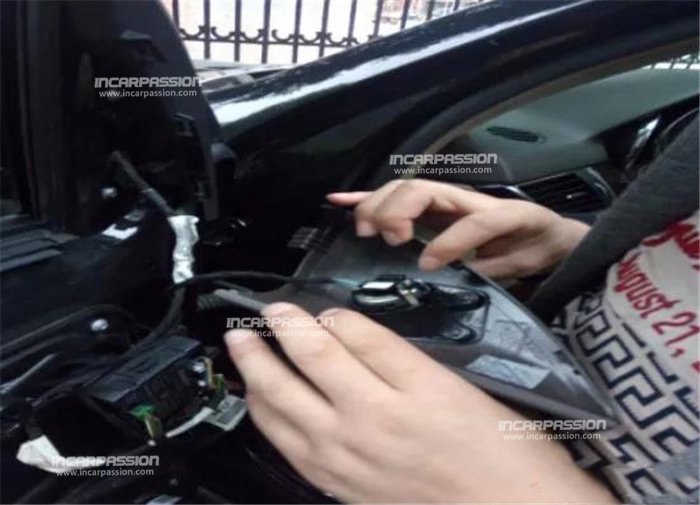

Replace original tweeter frame to 3D tweeter

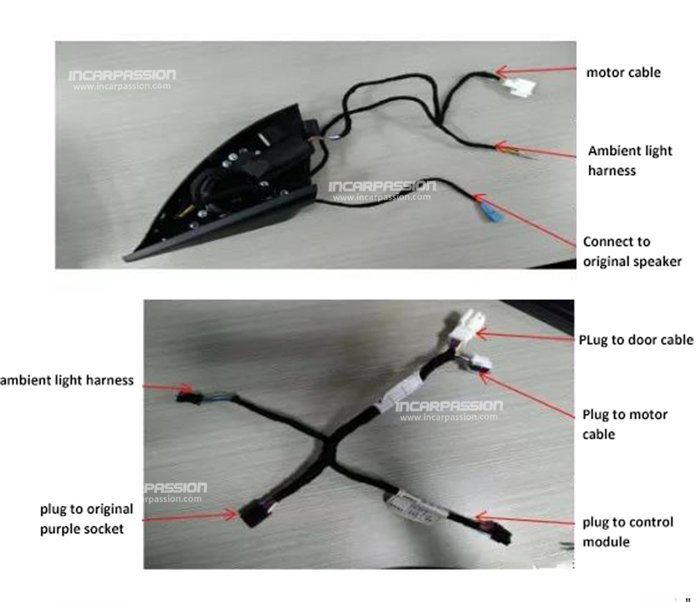

Cable Connection Instruction

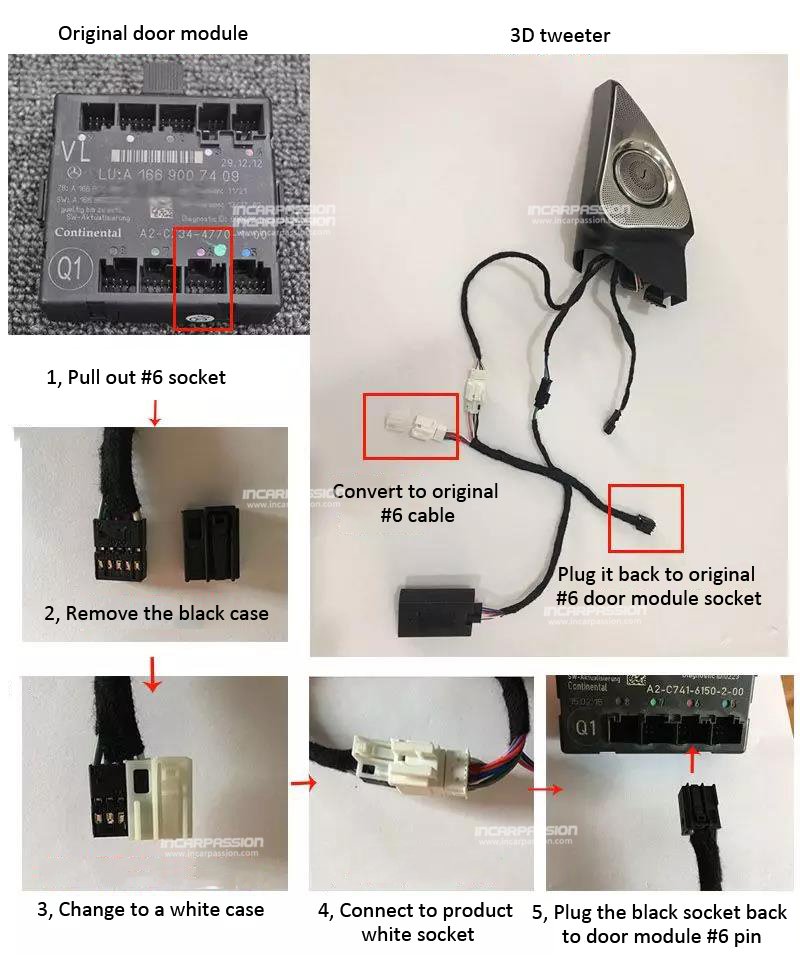

1, Pull out #6 cable of original door module, remove the black case, replace it with the white case come with product
2, After changing the case, plug the original socket to product white socket
3, Connect product black socket back to #6 socket of original module

Note:
1, For ML/GL, if door module is low version(check #6 socket 5, 9, 10 if have pin, if all have pin, then it is high version, otherwise it is low version), need to change to high version door module and do the computer coding to realize 3 colors ambient light

2, For GLE/GLS, if car don’t have original ambient light, need to do coding to activate ambient light function
