This installation instructions will show you how to install a Android navigation screen for Mercedes GLK X204, upgrade the original small screen to 10.25” big touch screen.

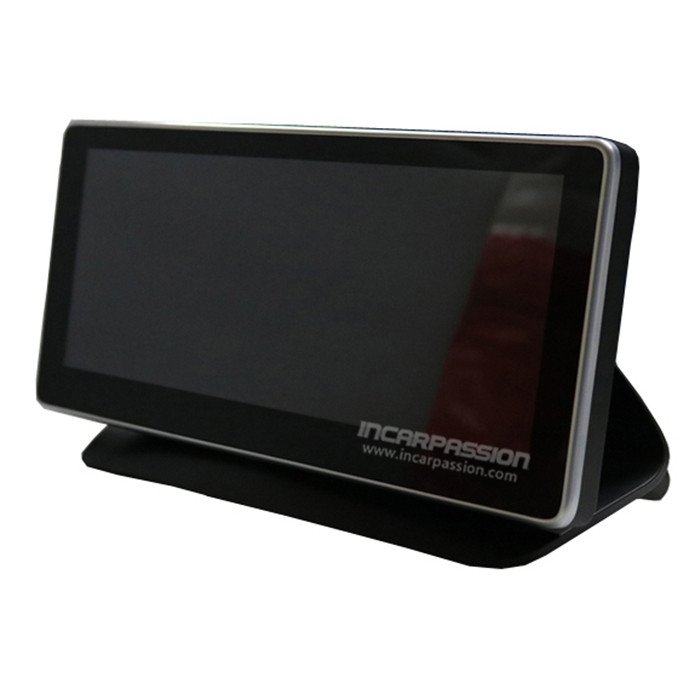

Product link: 10.25” Round Corner Mbux UI Android 8.1 GPS Navigation System for Mercedes Benz GLK X204
1, original screen
2, use slot screwdriver rotate the silver ring to anticlockwise direction
3, After silver ring is removed
4, pry out glove box panel

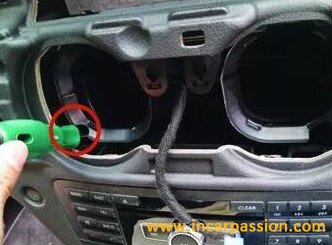

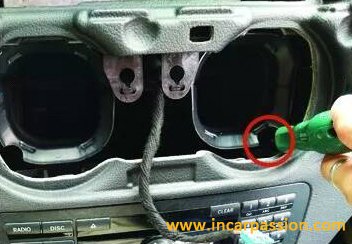

5, remove air vent fixing screws
6, pry out air vent panel, pull out emergency light socket

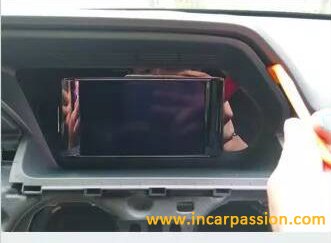

7, pry out original screen frame
8, pry out original screen frame

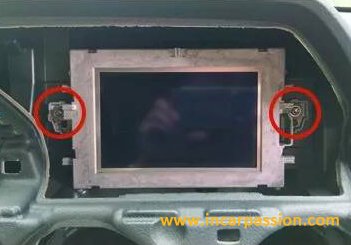

9, remove the screws, take out
the screen
10, remove the radio fixing screws
11, remove the radio fixing screws
12, pry out original radio system
13, pull out radio panel hardness

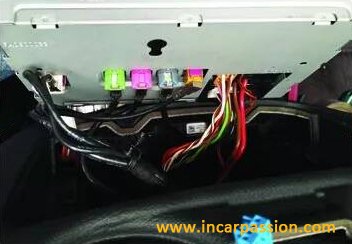

14, pull out hardness behind
the radio system
15, Convert our lvds cable to
original screen
16, Convert to radio system socket
17, install the bracket and screen

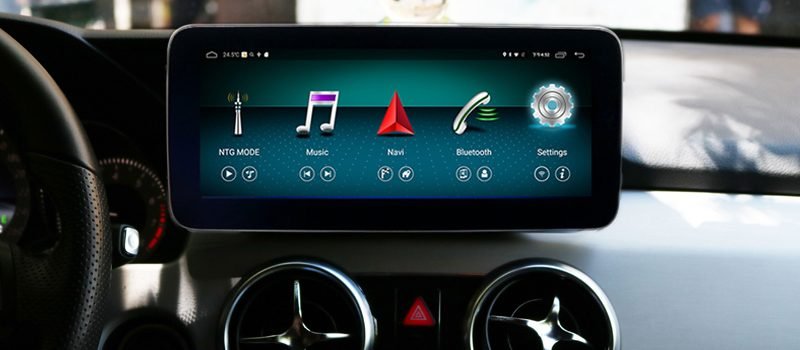

18, after installed

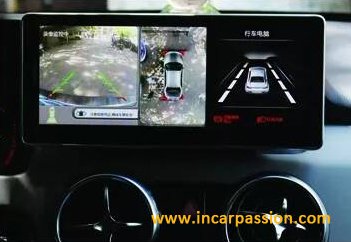

19, after installed
20, after installed
